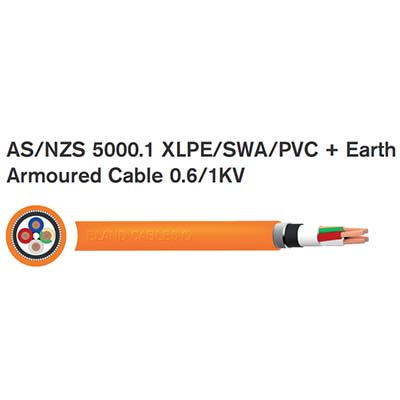

APPLICATION

Armoured power cables with reduced earth for use in mains,

sub-mains and sub-circuits where enclosed in conduit, buried

direct or in underground ducts for buildings and industrial plants

where not subject to mechanical damage.

CHARACTERISTICS

Rated Voltage Uo/U

0.6/1kV

Temperature Rating

Maximum operating temperature +90oC

Minimum Bending Radius

8x overall diameter

CONSTRUCTION

Conductor

Plain annealed copper

Insulation

XLPE X-90 (Cross-linked polyethylene)

Bedding

PVC 5V-90 (Polyvinyl Chloride)

Armour

SWA (Galvanised Steel Wire Armour)

Outer Sheath

PVC 5V-90 (Polyvinyl Chloride)

Core Identification

3 Cores + Earth: Red White Blue Green/Yellow

4 Cores + Earth: Red White Blue Black Green/Yellow

Sheath Colour

Orange

STANDARDS

AS/NZS 5000.1, AS/NZS 3008, AS/NZS 1125
