APPLICATION

Distribution power cable for static application, mostly in

ground, but also in water, within facilities, in cable canals and

in concrete. This cable can be used in electric power plants,

transformer stations, industrial plants, metropolitan networks

and other electric plants. Applied in conditions requiring

protection against heavier mechanical damages, but where

cables are not exposed to heavier tensile strain.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Test Voltage

4kV

Temperature Rating

Operating: -10°C to +60°C

Minimum Bending Radius

Single core: 15 x overall diameter

Multi core: 12 x overall diameter

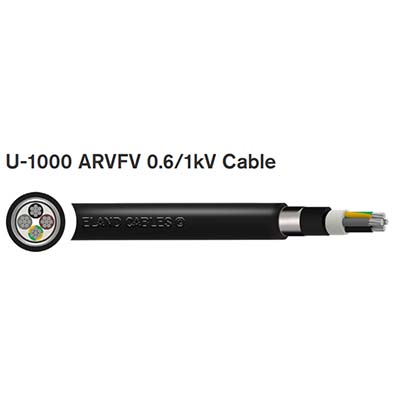

CONSTRUCTION

Conductor

Class 2 Aluminium

Insulation

XLPE Compound (Cross-Linked Polyethylene)

Bedding

Extruded elastomere or plastomere compound or plastic tape

Armour

Two Galvanised Steel Tapes

Sheath

PVC Compound (Polyvinyl Chloride)

Core Identification

3 core: Black Brown Grey

3 core including earth: Blue Brown Green/Yellow

4 core: Blue Black Brown Grey

5 core: Blue Brown Black Grey Black

Sheath Colour

Black

STANDARDS

NF C 32-322, EN 60228
