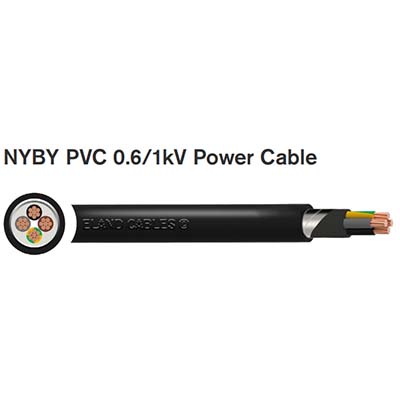

APPLICATION

The NYBY cable is suitable for installation indoors, in cable

channels and in duct in ground in switchgear, power stations

and industrial application, in harsh environments where a high

level mechanical protection is required.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Test Voltage

3.5kV

Temperature Rating

Maximum Operating: +70ºC

Maximum Short-Circuit: +160°C

Minimum Bending Radius

12 x overall diameter

CONSTRUCTION

Conductor

Class 2 Stranded copper

Insulation

PVC (Polyvinyl chloride)

Filler

PVC (Polyvinyl chloride)

Armour

Double galvanized steel tape

Outer Sheath

PVC (Polyvinyl chloride)

Core Identification

2 core: Brown Blue

3 core: Brown Blue Green/Yellow

4 core: Brown Black Grey Green/Yellow

5 core: Brown Blue Black Grey Green/Yellow

Outer Sheath Colour

Black

STANDARDS

IEC 60502-1, VDE 0276-603, IS 1516.1

Flame retardant according to IEC 60332-1
