APPLICATION

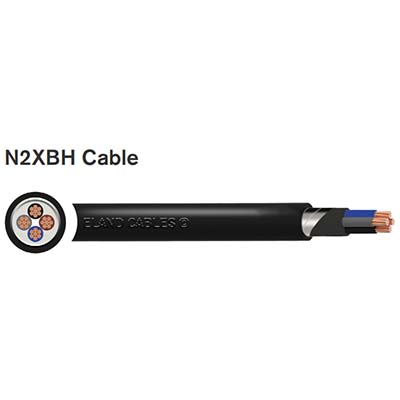

The N2XBH cable can be used in refineries, hotels, schools,

tunnels, high constructions, hospitals, power plants, data

processing centers, populated business centers where there is

a risk of fire.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Test Voltage

3.5kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

12 x overall diameter

CONSTRUCTION

Conductor

Class 2 Stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Filler

HFFR (Halogen free flame retardant)

Armour

Double galvanized steel tape

Outer Sheath

HFFR (Halogen free flame retardant)

Core Identification

2 core: Blue Brown

3 core: Brown Black Grey

4 core: Blue Brown Black Grey

5 core: Blue Brown Black Grey Black

Sheath Colour

Black Green

STANDARDS

DIN VDE 0276-604, TS HD 604.S1, IS 1516.1, IEC 60502-1

Flame retardant according to IEC 60332-3-24 Cat. C

Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/

EN 61034-1/2
