APPLICATION

For installation indoors, in cable channels and in duct in ground

in switchgear, power stations and industrial application, in

harsh environments where a high level mechanical protection is

required.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Test Voltage

3.5kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

12 x overall diameter

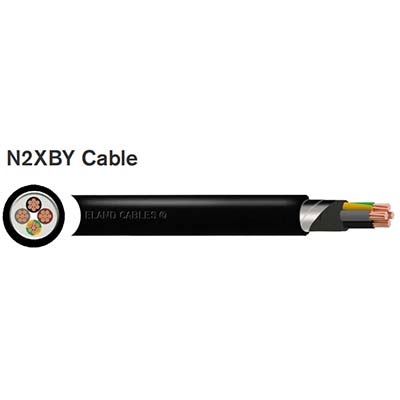

CONSTRUCTION

Conductor

Class 2 Stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Filler

Polyvinyl chloride (PVC)

Armour

Double galvanized steel tape

Outer Sheath

Polyvinyl chloride (PVC)

Core Identification

2 core: Brown Blue

3 core: Brown Blue Green/Yellow

4 core: Brown Black Grey Green/Yellow

5 core: Brown Blue Black Grey Green/Yellow

7 core and above: Black Green/Yellow

Outer Sheath Colour

Black
