APPLICATION

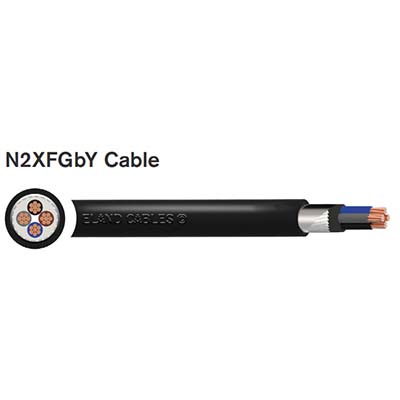

The N2XFGbY cable is suitable for installation in the ground,

indoors, cable trunking and outdoors if increased mechanical

protection is required where high-pulling stresses may occur

during installation or operation offering.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Test Voltage

3.5kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

12 x overall diameter

CONSTRUCTION

Conductor

Class 2 Stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Filler

PVC (Polyvinyl chloride)

Armour 1

SWA (Galvanised flat steel wire)

Armour 2

Galvanised steel tape

Outer Sheath

PVC (Polyvinyl chloride)

Core Identification

2 core: Blue Brown

3 core: Brown Black Grey

4 core: Blue Brown Black Grey

5 core: Blue Brown Black Grey Black

Outer Sheath Colour

Black

STANDARDS

IEC 60502-1, VDE 0276-603

Flame retardant according to IEC 60332-1
