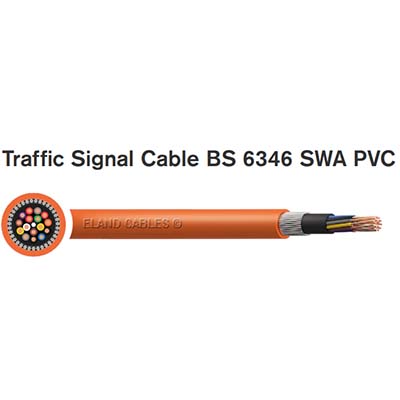

APPLICATION

For the interconnection of traffic signal equipment or other

applications requiring high core configurations with mechanical

robustness.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -15°C to +70°C

Short Circuit Temperature

+160°C

Minimum Bending Radius

6 x overall diameter

CONSTRUCTION

Conductor

Class 1 annealed copper conductor

Insulation

PVC (Polyvinyl Chloride)

Bedding

Polymeric compound with a tensile strength of not less than

4N/mm2 and an elongation break of not less than 50%

Armour

Single layer of galvanized wires laid in a right direction

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Orange

STANDARDS

BS 6346, BS 50363

Flame Retardant according to IEC/EN 60332-1-2
