APPLICATION

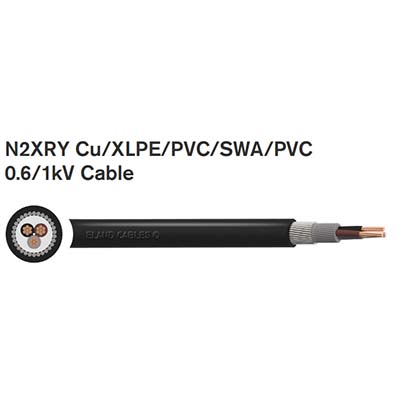

European name of the BS5467 cable. Multi-core PVC cable

with steel wire armour (SWA). Power and auxiliary control

cables for use in power networks, underground, outdoor and

indoor applications and for use in cable ducting.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -25°C to +90°C

Minimum Bending Radius

1.5mm² to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

PVC (Polyvinyl Chloride)

Armour

SWA (Steel Wire Armour)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

2 core: Brown Blue

3 core: Brown Black Grey

4 core: Brown Blue Black Grey

5 core: Green/Yellow Brown Blue Black Grey

Alternative Core Identification

White cores with Black numbers

Sheath Colour

Black

STANDARDS

BS 5467, IEC/EN 60502-1, IEC/EN 60228

Flame Retardant according to IEC/EN 60332-1-2
