APPLICATION

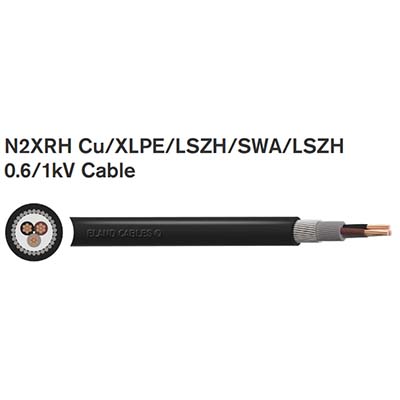

European reference for a low voltage multi-core LSZH power

cable with steel wire armour (SWA). Same construction as the

British Standard BS6724 cable. Power and auxiliary control

cables for use in power networks, underground, outdoor and

indoor applications and for use in cable ducting. For installation

where fire, smoke emission and toxicfumes create a potential

threat to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -20°C to +90°C

Minimum Bending Radius

1.5mm² to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

SWA (Steel Wire Armour)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

2 core: Brown Blue

3 core: Brown Black Grey

4 core: Brown Blue Black Grey

5 core: Green/Yellow Brown Blue Black Grey

Alternative Core Identification

White cores with Black numbers

Sheath Colour

Black

STANDARDS

BS 6724, IEC/EN 60228, EN 50267-2-1, IEC/EN 60502-1,

Flame Retardant according to IEC/EN 60332-1-2, IEC/EN

60332-3-24 Cat C

Low Smoke Zero Halogen according to IEC/EN 60754-1/2,

IEC/EN 61034-1/2
