APPLICATION

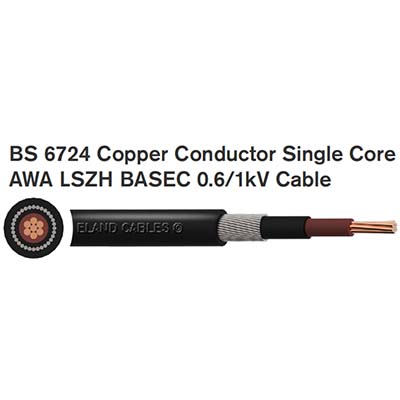

Single core LSZH cable with aluminium wire armour (AWA).

Power and auxiliary fixed wiring cables for use in power

networks, underground, outdoor and indoor applications and

for use in cable ducting. For installation where fire, smoke

emission and toxic fumes create a potential threat to life and

equipment.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -20°C to +90°C

Minimum Bending Radius

Fixed: 8 x overall diameter

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

AWA (Aluminium Wire Armour)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

Brown

Sheath Colour

Black

CABLE THIRD-PARTY ACCREDITATIONS

We supply BASEC approved products

Cables are tested and certified by BASEC, The British

Approvals Service for Cables
