APPLICATION

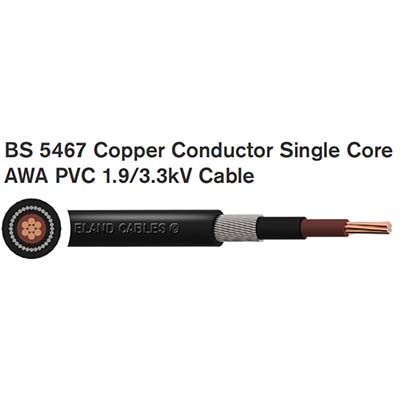

Single core PVC cable with aluminium wire armour (AWA).

Power and auxiliary control cables for use in power networks,

underground in free-draining soil, outdoor and indoor

applications and for use in cable ducting.

CHARACTERISTICS

Voltage Rating Uo/U

1.9/3.3kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

8 x overall diameter

CONSTRUCTION

Conductor

Class 2 circular stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Separator

Polyester Tape

Filler

PVC (Polyvinyl Chloride)

Armour

AWA (Aluminium Wire Armour)

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

Brown

Sheath Colour

Black

STANDARDS

BS 5467, IEC/EN 60502-1, EN 60228

Flame retardant to IEC/EN 60332-1

UV Resistant
