APPLICATION

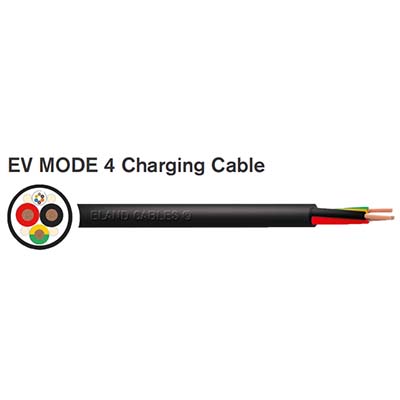

Class 6 flexible power cable with enhanced DC Power rating

suitable for Mode 4 EV charging in public and commercial high

powered electric vehicle charging stations. Suitable for

installations with possibility of water immersion (AD7). G16

quality HEPR insulation with low corrosive gas emission and

low fire propagation properties.

CHARACTERISTICS

Voltage Rating

1500V DC

Test Voltage

3500V DC (2000V control/pilot cores)

Temperature Range

-40ºC to +90ºC

Maximum Short Circuit Temperature

+160ºC

Minimum Bending Radius

5 x overall diameter

Maximum Tensile Load

15 N/mm

CONSTRUCTION

Conductor

Class 6 Fine Flexible Copper

Insulation

Rubber Compound Type EV1-2

Control/Pilot Cores

Class 5 Flexible Copper with Rubber insulation

Sheath

PUR-HF (Polyurethane Halogen-Free)

Outer Sheath Colour

Black Orange

STANDARDS

IEC 62893, EN 50620, ISO 61851, EN/IEC 60228, IEC

60332-1-2, IEC 60811-403/4, ISO 4892
