APPLICATION

For use in domestic premises, kitchen and offices. for ordinary

duty applications and supplying appliances where cables are

subject to low mechanical stresses (e.g. vacuum cleaners,

cooking appliances, soldering irons, toasters, domestic

portable tools and hand held inspection lamps). Use outdoors

for temporary periods of short duration.

CHARACTERISTICS

Voltage Rating Uo/U

300/500V

Test Voltage

2.5kV

Temperature Rating

Operating: -40ºC to +90ºC

Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)

Minimum Bending Radius

5 x overall diameter

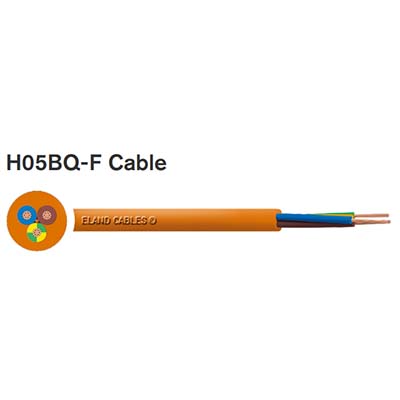

CONSTRUCTION

Conductor

Class 5 Flexible Copper Conductor

Insulation

Cross linked EPR (Ethylene Propylene Rubber)

Outer Sheath

PUR (Polyurethane)

Core Identi ication

2 core:

Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Brown Black Grey Blue

Sheath Colour

Orange

STANDARDS

EN 50363-1, EN 50363-10-2, EN 50525-2-21, EN 60228
