APPLICATION

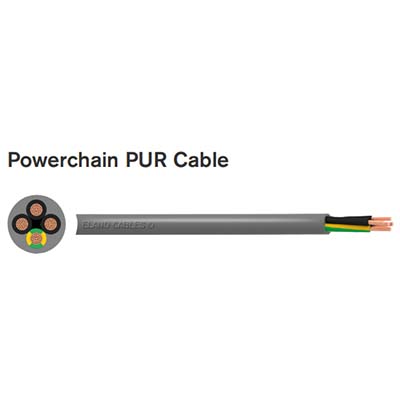

Flexible control cable for permanent moved applications

under heavy duty conditions. The cable is halogen-free,

flame retardant and resistant against most chemicals used in

industrial environment.

CHARACTERISTICS

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -50ºC to +80ºC

Installation: -40ºC to +80ºC

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 7.5 x overall diameter

CONSTRUCTION

Conductor

Class 6 Fine Stranded Bare Copper

Insulation

TPE/PP (Thermoplastic Elastomer / Polypropylene)

Outer Sheath

PUR (Polyurethane)

Core Identification

Black numbered +

Green/Yellow

Sheath Colour

Grey

STANDARDS

VDE 0482-332-1-2, EN 60811-404

Fire Retardant according to IEC/EN 60332-1
