APPLICATION

For use as energy and control cable in festoon systems and as

a drag chain cable. PUR sheath offers protection against

hydrolysis, solvents, alkalines and oils. Copper screen provide

protection against electromagnetic effects.

CHARACTERISTICS

Voltage Rating (Uo/U)

0.6/1kV

Temperature Rating

Fixed installation: -50°C to + 80°C

Mobile operation: -40°C to +80°C

Minimum Bending Radius

Fixed Application: 6 x Overall Diameter

Mobile Applications: 8 x Overall Diameter

Maximum Tensile Load

15 N/mm²

Maximum Torsion

±25º/m

Travel Speed

Festoon Systems: Up to 200m/min

Reeling: Up to 60m/min horiz. / Up to 200m/min vertical

Chain Systems: Up to 200m/min vertical

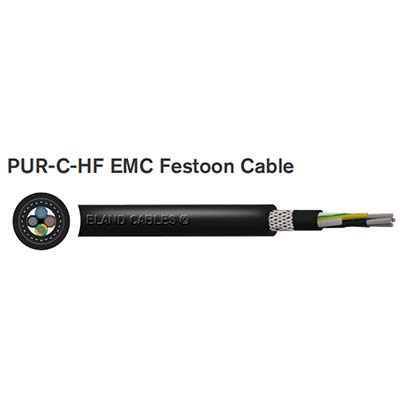

CONSTRUCTION

Conductor

Class 5 flexible stranded Copper

Insulation

Halogen free compound

Lay Up

Central textile strength member, cores laid up in concentric layers

Inner Sheath

PUR-HF (Polyurethane Halogen Free, flame retardant)

Screen

TCWB (Tinned copper wire braid) coverage min. 80%

Outer Sheath

PUR-HF (Polyurethane Halogen Free, flame retardant)

Core Identification

4 Core: Green/Yellow Brown Black Grey

5 Core: Green/Yellow Blue Brown Black Grey

From 6 cores: white cores with black numbers

Sheath Colour

Black or Yellow or Orange

STANDARDS

Generally to IEC 60502, IEC 60228, DIN VDE 0293-308, DIN

VDE 0472-501-503/508, DIN VDE 0472-303/401/402/602/615

DIN VDE 0250-1 IEC 60332-1 HD/EN/IEC 60811-2-1,

DIN VDE 0473-811-2-1
