APPLICATION

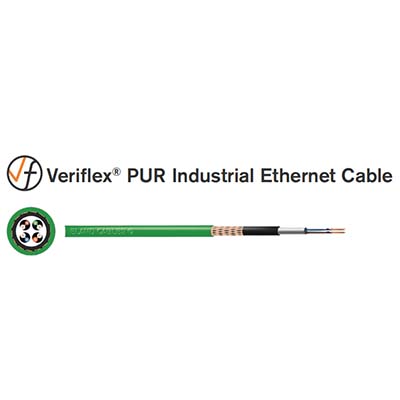

Industrial Ethernet cable suitable for Profinet Type

B applications. Can be used in dry or damp rooms for plant

engineering and machinery manufacturing. The rugged

polyurethane sheath provides protection even in extreme

industrial environments.

CHARACTERISTICS

Temperature Rating

Fixed: -40ºC to +80ºC

Flexed: -20ºC to +70ºC

Minimum Bending Radius

Fixed: 8 x overall diameter

Flexed: 12 x overall diameter

CONSTRUCTION

Conductor

Stranded bare copper wires (AWG24/7)

Insulation

FPE (Foam Skin Polyethylene)

Separator Tape

PET (Polyester)

Pair Shield

Al/PET (Aluminium Polyester Tape)

Braid

TCWB (Tinned Copper Wire Braid) 90% coverage

Sheath

PUR (Polyurethane)

Pairs Identification

Pair 1: White Green

Pair 2: White Orange

Pair 3: White Blue

Pair 4: White Brown

Sheath Colour

Green

STANDARDS

IEC 61156-6, BS EN 60811-404
