APPLICATION

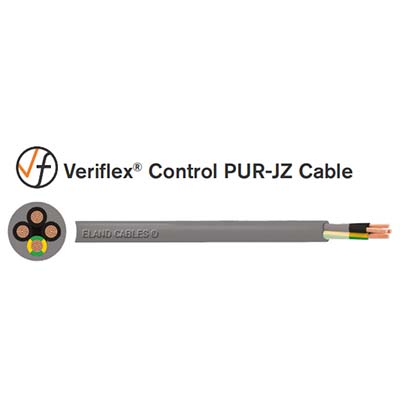

Veriflex® flexible PUR sheathed cable for tooling machinery,

production lines, and flexible applications with free movement

and low tensile load. Suitable for dry, ambient and wet

environments. They are resistant to oil, many chemicals,

abrasion, and mechanical stress. These cables can be used in

outdoor applications in fixed installations.

CHARACTERISTICS

Voltage Rating

300/500V

Test Voltage

4kV

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 10 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper wires

Insulation

PVC (Polyvinyl Chloride)

Separator

Non-woven polyester tape

Sheath

PUR (Polyurethane)

Core Identification

Black with white number

From 3 cores: Black with white number + Green/Yellow

Sheath Colour

Grey

STANDARDS

VDE 0295, VDE 0293-334, VDE 0293-308,

VDE 0285-525-1, VDE 0285-525-2-51
