APPLICATION

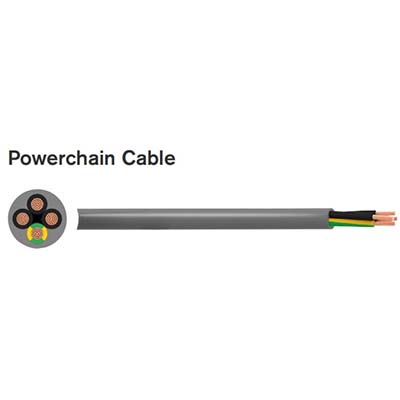

These highly-flexible data cables are suitable for continuous

mobile use under extreme conditions. It is applicable in

standard drag chains without tensile load.

CHARACTERISTICS

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40ºC to +70ºC

Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed: 5 x overall diameter

Flexed: 10 x overall diameter

CONSTRUCTION

Conductor

Class 6 Fine Stranded Bare Copper

Insulation

PVC/PP (Polyvinyl Chloride / Polypropylene)

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

Black numbered + Green/Yellow

Sheath Colour

Grey

STANDARDS

VDE 0482-332-1-2, EN 60811-2-1

Fire Retardant according to: IEC/EN 60332-1
