APPLICATION

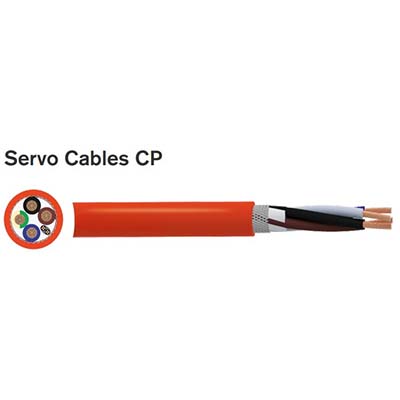

Low capacity connection cable between servo controller and

frequency driven motor. The Servo Cable CP is suitable for

application in machine tools and drag chains with medium

mechanical stress.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -50ºC to +80ºC

Installation: -40ºC to +80ºC

Minimum Bending Radius

Fixed: 5 x overall diameter

Flexed: 7.5 x overall diameter

CONSTRUCTION

Conductor

Class 6 Fine Stranded Bare Copper

Insulation

PP (Polypropylen)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PUR (Polyurethane)

Core Identification

Black numebered + Green/Yellow

Sheath Colour

Orange

STANDARDS

Siemens Standard 6FX8008+, EN 60811-404,

Flame Retardant according to IEC/EN 60332-1
