APPLICATION

Used as interconnecting cable for measuring, controlling or

regulation in control equipment for assembly and production

lines, conveyors and for computer units. Suitable for flexible

use in conditions of light mechanical stress. Can be used

outdoors when protected against direct sunlight, and in

dry or moist conditions indoors. The braided screen offers

mechanical protection and a level of electro-magnetic

shielding. The galvanized coating helps protect against

corrosion. For installations where fire, smoke emissions and

toxic fumes create a potential risk to life and equipment

CHARACTERISTICS

Voltage Rating (Uo/U)

300/500V

Temperature Rating

-15ºC to +70°C

Minimum Bending Radius

10 x overall diameter

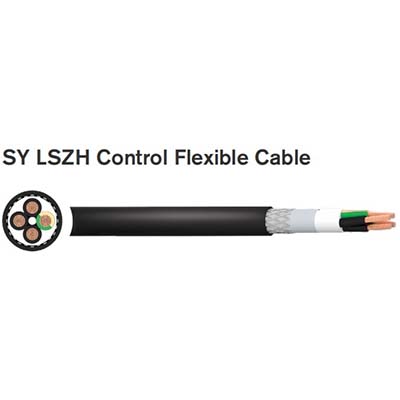

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

LSZH (Low Smoke Zero Halogen) Type TI6

Bedding

LSZH (Low Smoke Zero Halogen) Type TM7

Braiding

GSWB (Galvanized Steel Wire Braid) minimum coverage of

braiding shall be 50%

Sheath

LSZH (Low Smoke Zero Halogen) Type TM7

Core Identification

2 core:

Blue

Brown

3 core:

Blue

Brown

Green/Yellow

4 core: Brown Black Grey Green/Yellow

5 core: Blue Brown Black Grey Green/Yellow

Sheath Colour

Black

Note

SY Cables are not suitable for direct connection into the main

service fuse.

STANDARDS

Flame Retardant according to IEC/EN 60332-1-2,

IEC/EN 60332-3-24

Low Smoke Zero Halogen according to IEC/EN 61034-1

Determination of halogen acid gas content: IEC/EN 60574-1

Determination of acidity and conductivity: IEC/EN 60574-2
