APPLICATION

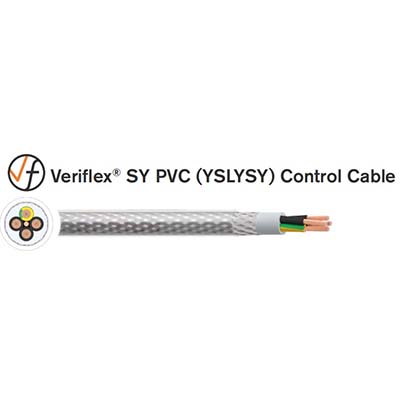

Veriflex® steel wire braided flexible connecting cables for

instrumentation and control equipment, for tooling machinery

production lines, and in flexible applications for free movement

without tensile load. Suitable for use in dry, moist and wet

rooms. The galvanised steel wire braid serves as protection

against mechanical traverse loads and acts as a magnetic

screen against interference. These cables are not used for

outdoor or underground installation.

CHARACTERISTICS

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

PVC (Polyvinyl Chloride)

Inner Sheath

PVC (Polyvinyl Chloride)

Armour

GSWB (Galvanised Steel Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

Black with White number

From 3 cores: Black with White number + Green/Yellow

Colour-coded cores available upon request

Sheath Colour

Transparent

STANDARDS

VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2
