APPLICATION

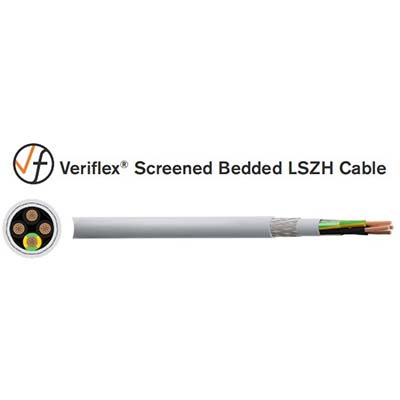

Veriflex® halogen-free screened flexible connecting cables for

use in mechanical engineering for instrumentation and control

equipment and for tooling machinery production lines. Suitable

for flexible applications for free movement without tensile load,

in dry, moist and wet rooms. The screen protects against

external interference pulses whilst the bedding provides

additional mechanical protection. These cables are not used

for outdoor or underground installation.

CHARACTERISTICS

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -15°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Moved: 15 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible stranded plain copper

Insulation

LSZH (Low Smoke Zero Halogen)

Bedding

LSZH (Low Smoke Zero Halogen)

Screen

TCWB (Tinned Copper Wires Braid)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

Black with White number

From 3 cores: Black with White number + Green/Yellow

Sheath Colour

Grey

STANDARDS

VDE 0295, VDE 0207-303-7, VDE 0293-308, VDE 0819-102,

Flame Retardant according to IEC/EN 60332-1-2, IEC/EN

60332-3-24

Low Smoke Zero Halogen according to IEC/EN 60754-1/2, IEC/

EN 61034-1/2
