APPLICATION

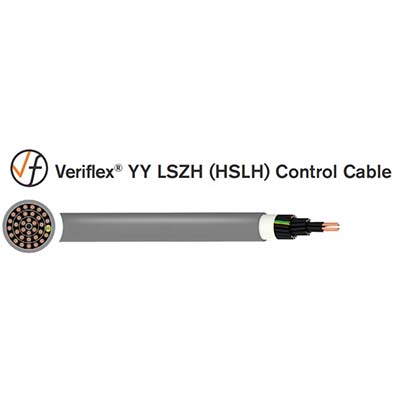

Veriflex® low smoke halogen-free flexible connecting cable for

instrumentation and control equipment for tooling machinery,

production lines, and in flexible applications with free

movement and no tensile load. Suitable for use in dry, ambient

and wet rooms. These cables are not suitable for outdoor or

underground installations..

CHARACTERISTICS

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -15°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

LSZH (Low Smoke Zero Halogen)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

Black with White number

From 3 cores: Black with White number + Green/Yellow

Colour-coded cores available upon request

Sheath Colour

Grey

STANDARDS

VDE 0207-303-7,

Flame Retardant according to IEC/EN 60332-1-2,

IEC/EN 60332-3-24

Low Smoke Zero Halogen according to IEC/EN 60754-1/2,

IEC/EN 61034-1/2
