APPLICATION

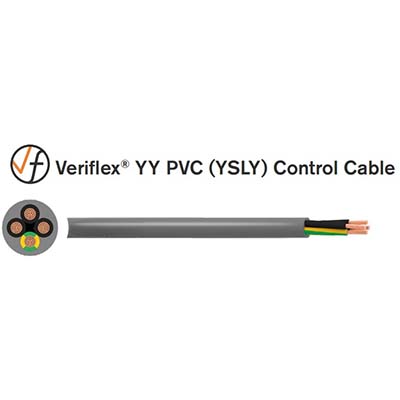

Veriflex® flexible YY control cable for instrumentation and

control equipment, for tooling machinery production lines, and

in flexible applications for free movement without tensile load.

Suitable in dry, ambient and wet rooms. These indoor cables

are not used for external or underground installation.

CHARACTERISTICS

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

Black with White number

From 3 cores: Black with white number + Green/Yellow

Colour-coded cores available upon request

Sheath Colour

Grey

STANDARDS

VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2
