APPLICATION

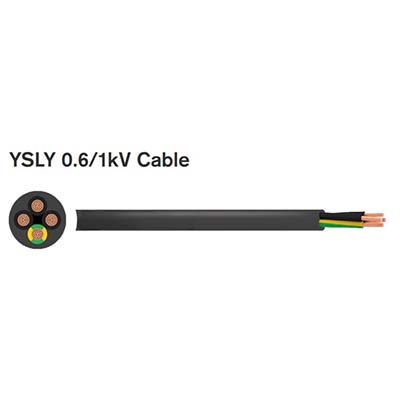

Flexible power, process control and instrumentation cable for

industry, machinery and outdoor environment. The YSLY cable

is resistant against most usual chemicals, oil and grease.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -20ºC to +70ºC

Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed Installation: 4 x overall diameter

Flexed Application: 7.5 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible stranded bare copper

Protective Conductor

Insulation

PVC (Polyvinyl Chloride)

Outer Sheath

Special PVC-Compound (Polyvinyl Chloride)

Core Identification

Black numebered + Green/Yellow

Sheath Colour

Black

STANDARDS

IEC/EN 60811-404

Fire Retardant according to: IEC/EN 60332-1-2
