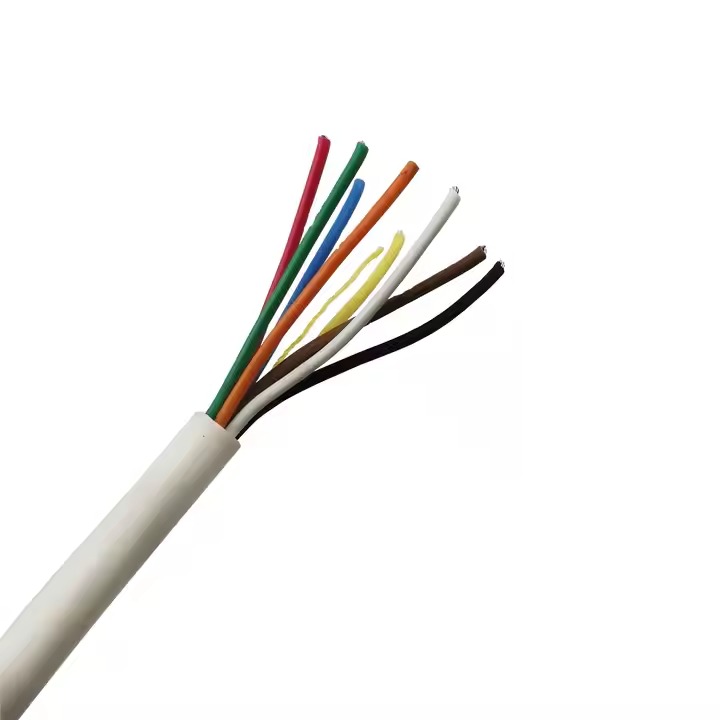

SECURITY CABLE 2C 4C 6C 8C 10C 12C Basic Construction | |||||||
2C | 4C | 6C | 8C | 10C | 12C | ||
Conductor | Material | TC/BC/CCA/TCCA | |||||
Nom.Dia | 7*0.2mm | ||||||
Dielectric | Material | PE | |||||
Nom.Dia | 7/0.20mm | ||||||
Shield | Material | Optional/AL Foil | |||||
Coverage | |||||||
Jacket | Material | PVC | |||||
Nom.Dia | 3.00MM | 3.50MM | 4.10MM | 4.50MM | 5.00MM | 5.40MM | |
BASIC CHARACTERISTICS | |||||||
Temperature Rating | -20℃ to 60℃ | ||||||
Operating Voltage | 300V | ||||||
DC Resistance per Conductor@ 20℃ | 16.5 Ohms/1M’Nom | ||||||
