The PE-insulated data cable is designed for computer application and data transmission. It is specially designed for wiring data systems with transmission rates up to 10MB/s, eg. for interfaces of types RS 422, RS 485. The twisted pair lay-up prevents electrical unbalances within the cable and this effectively suppresses cross-talk effect. It is designed for limited flexible use as well as for fixed installation in dry and damp interiors. Yv version reinforced with a black outer sheath suitable for outdoor and indoor use as well as for direct burial.

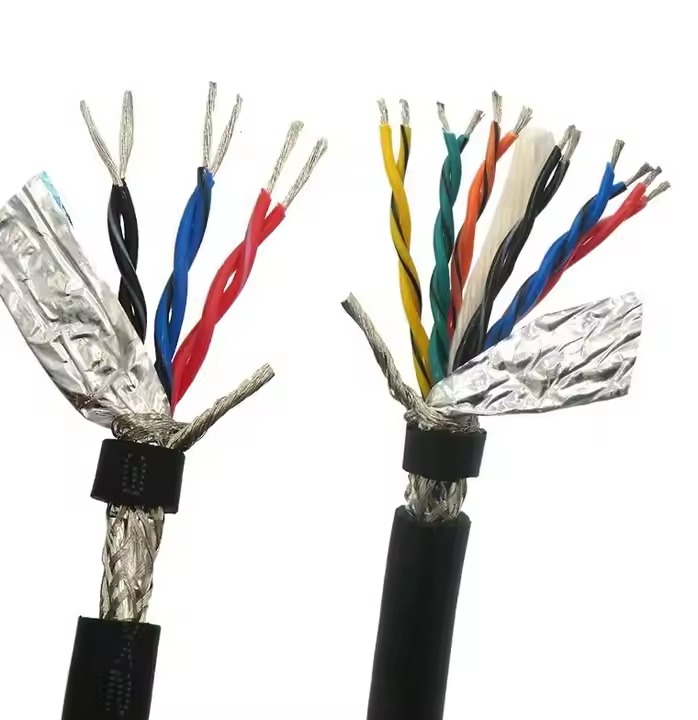

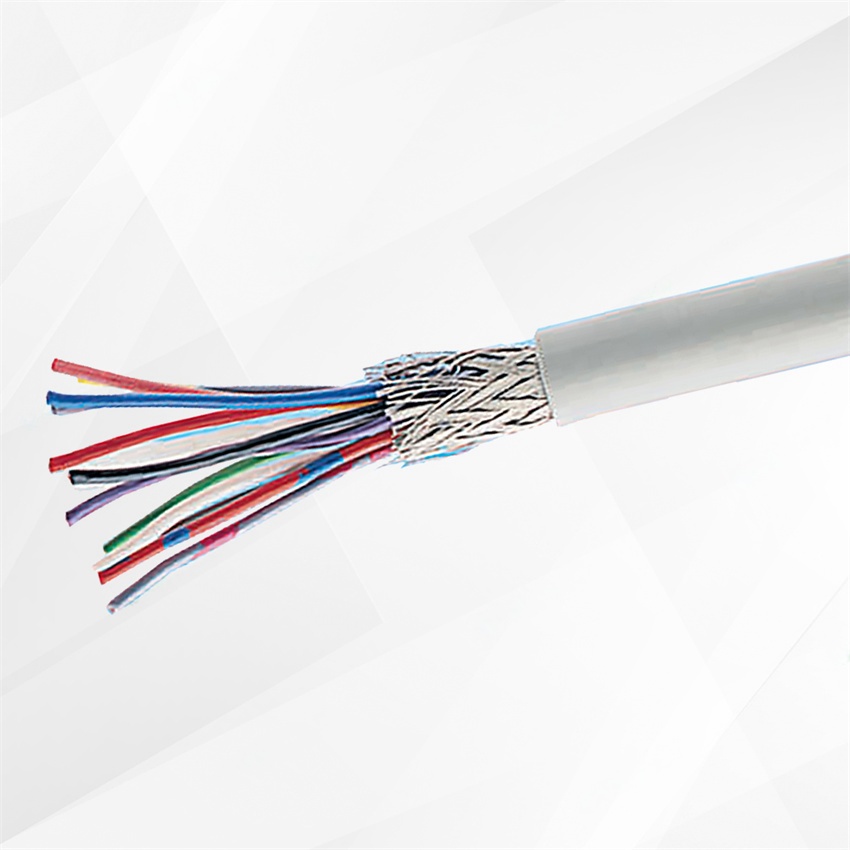

Cable Construction

- Plain copper conductor

- 7-wires strands to DIN VDE 0881, Suitable for Termi-Point and solder-free connection technique

- PE core insulation type 2YI1 to DIN VDE 0207 part 2

- Color coded to DIN 47100 with color repetition

- Cores twisted into layers

- Plastic foil separator

- 85% tinned copper braid

- PVC outer jacket type YM2 grey to DIN VDE 0207 part 5
