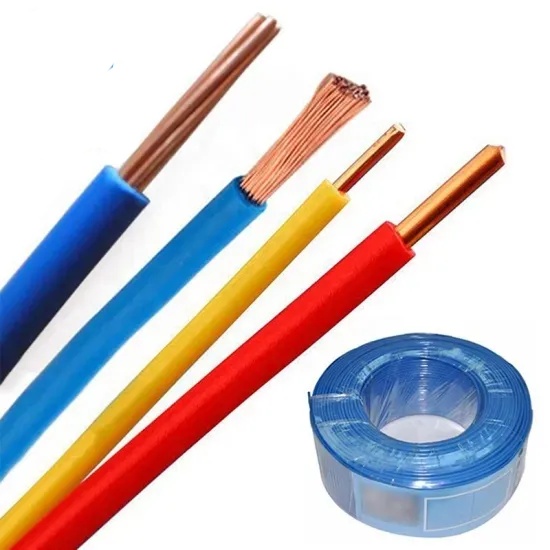

Code: H05V-K  H07V-K | 2491X

Construction

Finely stranded copper conductor

PVC insulation


Standard

BS 6004

HD 21.3 S3


Application

Domestic and light industrial wiring.

Can be clipped to surface, on trays or in free air where there is little risk of mechanical damage.

Suitable for laying into trunking or conduit etc. when mechanical protection is required.

May be embedded in plaster.


Voltage

Rated Voltage: Uo/U = 300/500V - 450/750 V

AC test voltage: 2 kV - 2.5kV


Technical Data

Maximum operating temperature 70°C

Short-circuit temperature 160°C

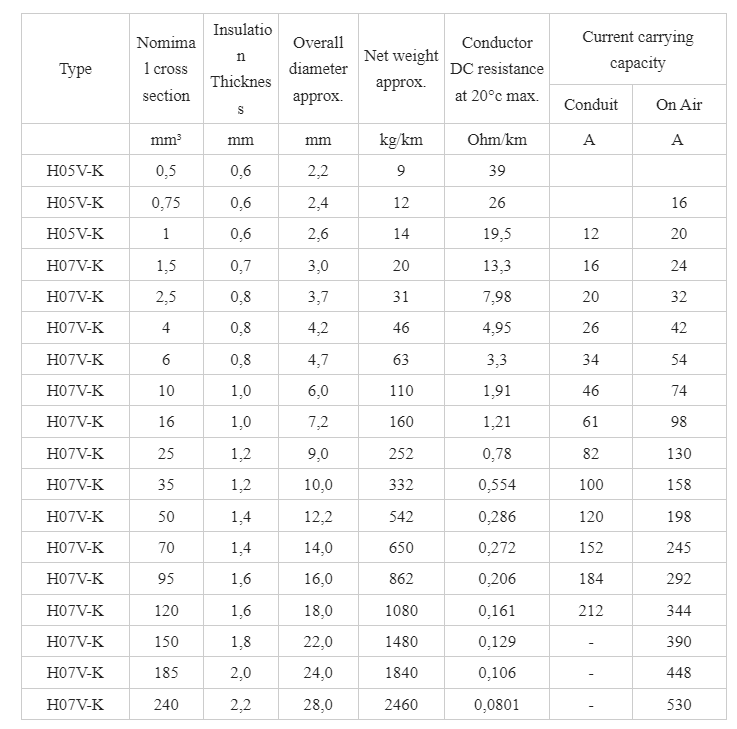

Current carrying capacity values given below are rated at 30°C ambient temperature
