1.Application

 These data transmission cables, oil- and fuel-resistant, are used for internal and external wiring applications at petrol pumps, for data transmission from the pumps to the cash desk and in the installation of video surveillance systems. These cables are also installed directly in the ground and are resistant to UV radiation. Special screens over individual cores guarantee good overall screening and ensure an interference-free transmission of control pulses.

CE = Product conforms with Low-Voltage Directive 2014/35/EU.

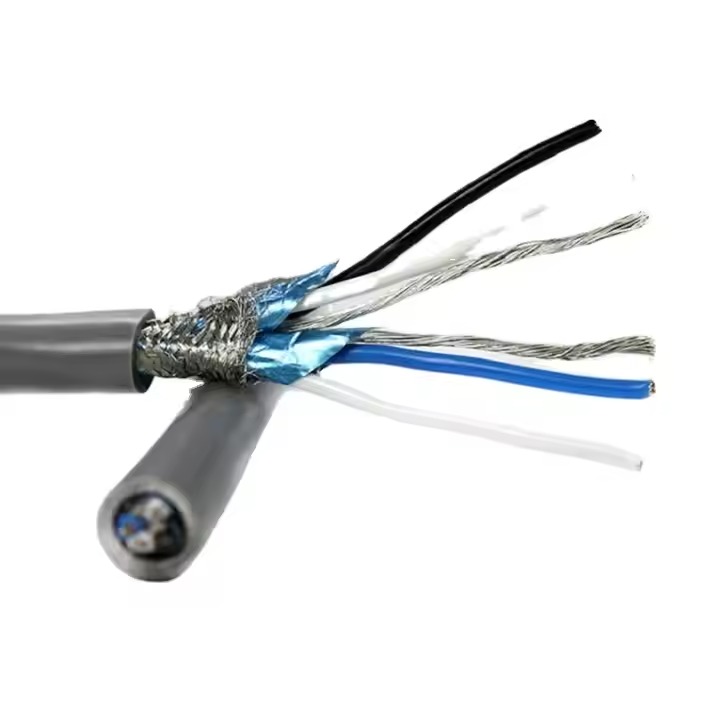

2.Construction

Bare copper conductor, fine wire

Part.-No. 32597, 32599

Tinned copper conductor, single wire

Part.-No. 32633

Core insulation of special PVC

acc. to DIN VDE 0207

Core identification black cores with

continuous white numbering

Each single core screened with aluminium/

polyester foil, metal layer at outside

Screened cores in layers with optimal

lay length screenings of each core make

contact mutually

Solid copper drain-wire Part.-No. 32633

copper drain-wire Part.-No. 32597, 32599

Common core sheath

Outer sheath of special PVC

Sheath colour: black

3.Standard

 DIN VDE 0207
