1.Application

Mica Taped, XLPE Insulated, LSZH Sheathed

300/500V Cable

Compliant With BS EN50288-7

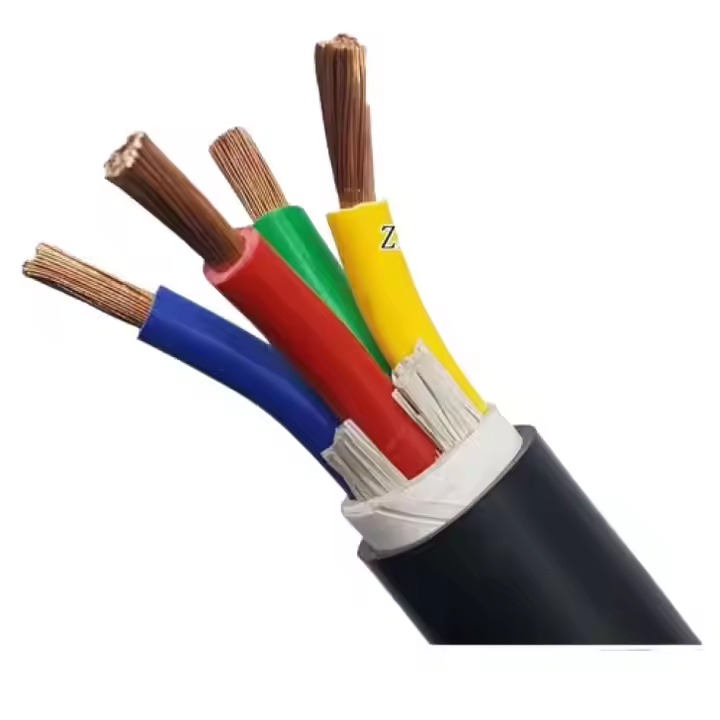

2.Construction

Conductor: Plain annealed copper, Class 2 Stranded circular or compacted

Fire barrier: Mica tape (MGT)

Insulation: Cross-link Polyethylene (XLPE) compound

Insulation colour: White with Black numbering or Others

Assembly: Cores cabled together with filler and bound with binder tape

Outer sheath: Low-Smoke Zero-Halogen (LSZH) compound with anti-termite characteristics and UV resistant

Outer sheath colour: Orange or others

ELECTRICAL CHARACTERISTICS

Operating voltage, U0/U: 600/1000V

Operating temperature: -15°C to +90°C

Final short circuit temperature: 250°C

Test Voltage: 3.5kV for 5 minutes

3.Standard

 Design specification: IEC60502-1

Conductor: IEC60228, BS EN60228

Fire resistance: BS6387 (C,W,Z), SS299 (C,W,Z), IEC60331

Flame retardancy: IEC60332-3-22, BS EN60332-3-22

Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2
