Name | ||||

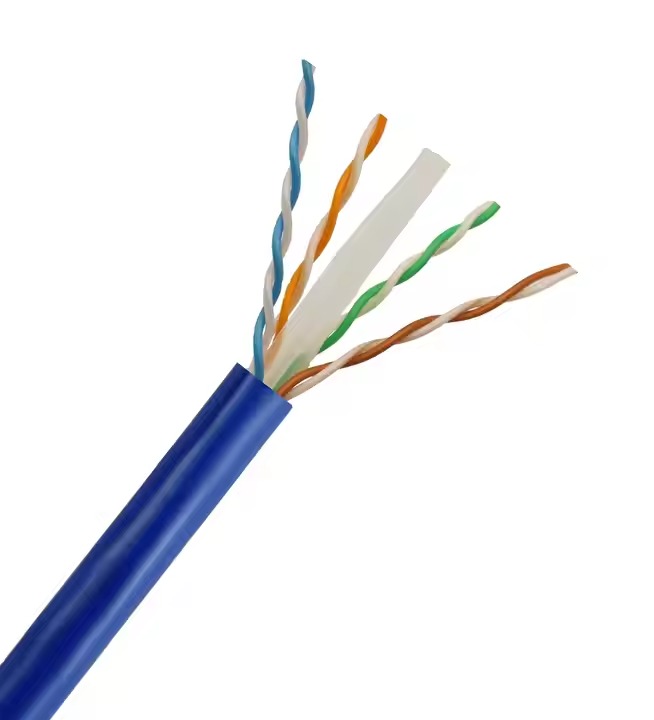

Cat6 4Pair UTP | Cat6 4Pair FTP | Cat6 4Pair SFTP | ||
Structure | Material | Diameter(mm) | ||
Conductor | CCA/BC | 0.57 | ||
Insulation | PE | 1.04 | ||
1st Shield | AL Foil | / | 100% | 100% |
2nd Shield | AL/CCA Braiding | / | / | 40-90% |
Jacket | PVC/PE | 5.70 | 6.20 | 6.70 |
Temperature Rating | -20℃ to 60℃ | ||||
Dielectric Breakdown | 2500V | ||||
DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
Characteristics Impedance | 100Ω | ||||
Other Electric Performance | Frequency （MHz） | Attenuation （dB/100m） | Return Loss （dB/100m） | Pair to Pair | |
Next （dB/100m） | ELFEXT （dB/100m） | ||||
1 | 2 | 20 | 75.3 | 63.8 | |
4 | 3.8 | 23 | 66.3 | 51.7 | |
8 | 5.3 | 24.5 | 61.8 | 45.7 | |
10 | 6 | 25 | 60.3 | 42.8 | |
16 | 7.6 | 25 | 57.2 | 39.7 | |
20 | 8.5 | 25 | 55.8 | 37.7 | |
25 | 9.5 | 24.3 | 54.3 | 35.8 | |
31.25 | 10.7 | 23.6 | 52.9 | 33.9 | |
62.5 | 15.4 | 21.5 | 48.4 | 30 | |
100 | 19.8 | 20.1 | 45.3 | 29 | |
155 | 25.2 | 18.8 | 42.4 | 28.1 | |
200 | 29 | 18 | 40.8 | 27.8 | |
250 | 32.9 | 17.3 | 39.3 | 23.8 | |
400 | 40.8 | 16.9 | 39.3 | 18.8 | |
