Name | ||

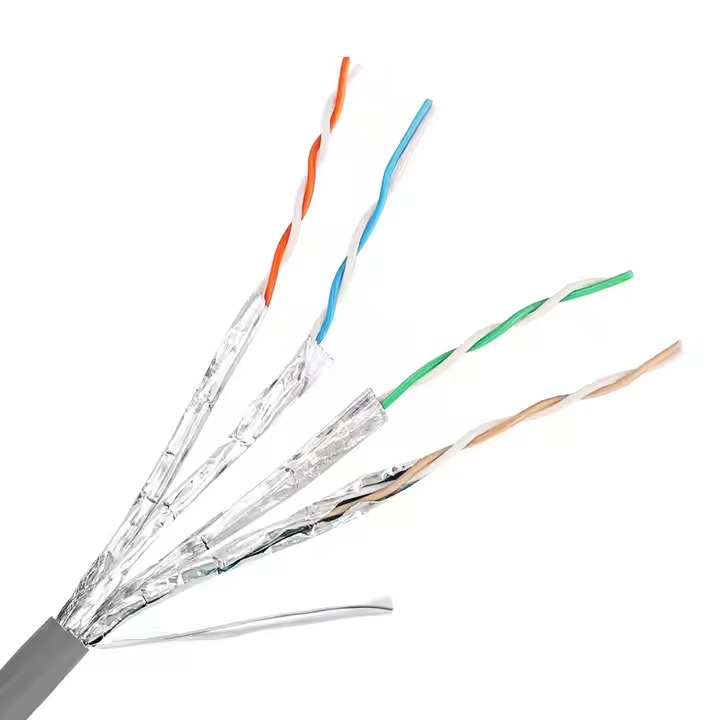

Cat6A 4Pair FTP | ||
Structure | Material | Diameter(mm) |
Conductor | BC | 0.56 |
Insulation | PE | 1.33 |
Pair Shield | AL Foil | 100% |
1st Shield | PET tape | 100% |
2nd Shield | / | / |
Jacket | PVC/LSZH | 7.0 |
Temperature Rating | -20℃ to 60℃ | ||||
Dielectric Breakdown | 2500V | ||||
DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max | ||||
Characteristics Impedance | 100±22Ω | ||||
Other Electric Performance | Frequency （MHz） | Attenuation （dB/100m） | Return Loss （dB/100m） | Pair to Pair | |
Next （dB/100m） | ELFEXT （dB/100m） | ||||
4 | 3.7 | 23 | 78 | 78 | |
8 | 5.2 | 24.5 | 78 | 75.9 | |
10 | 5.9 | 25 | 78 | 74 | |
16 | 7.4 | 25 | 78 | 69.9 | |
20 | 8.3 | 25 | 78 | 68 | |
25 | 9.3 | 24.3 | 78 | 66 | |
31.25 | 10.4 | 23.6 | 78 | 64.1 | |
62.5 | 14.9 | 21.5 | 75.5 | 58.1 | |
100 | 19 | 20.1 | 72.4 | 54 | |
150 | 23.6 | 18.9 | 69.8 | 50.2 | |
200 | 27.7 | 18 | 67.9 | 48 | |
250 | 31 | 17.3 | 66.4 | 46 | |
300 | 34.2 | 17.3 | 65.2 | 44.5 | |
600 | 50.1 | 17.3 | 60.7 | 38.4 | |
