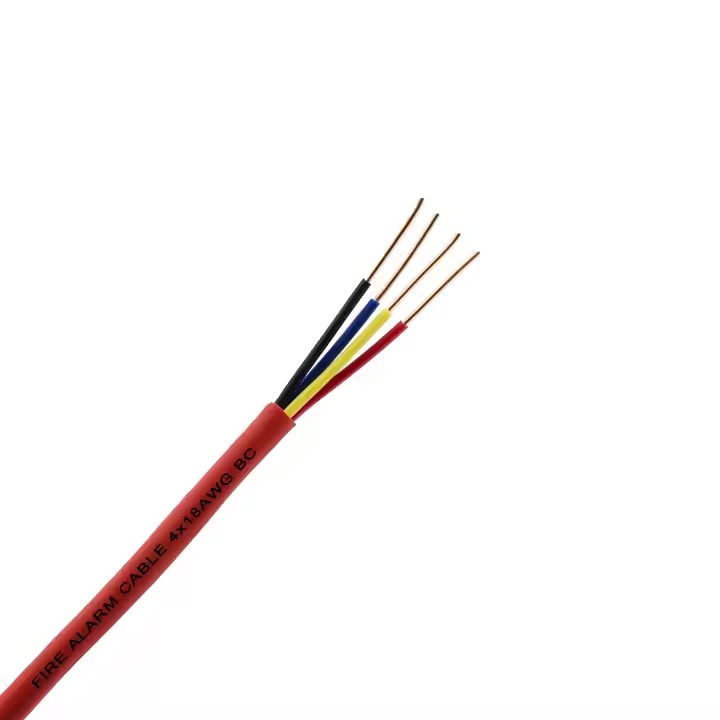

4C Fire Alarm Cable | ||||
Basic Construction | ||||
4C | ||||
Material | BC | |||
Conductor | Nom.Dia(mm) | 18AWG /1.02mm | ||
Dielectric | Material | PVC | ||
Nom.Dia(mm) | 1.88 | |||
Drain wire | Material | BC/TC | ||
Nom.Dia(mm) | 0.4mm | |||
Shield | Material | PET/Aluminum Foil | ||
Jacket | Material | PVC | ||
Nom.Dia(mm) | 6.0 | |||
BASIC CHARACTERISTICS | |||
Temperature Rating | -20℃～+105℃ | ||
Operating Voltage | 300V | ||
Maximum resistance： | 21.4 0hms/KM at 20℃ | ||
