1. Product use

A)The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.

B)The permissible continuous operating temperature of cables: BV-105 is not more than 150C, others are not more than 70℃

2.Manufacture length:

A)Coil length of cable (wire) is 100m, filled reel length not less than 100m. Short length not less than 10m can be delivered.

B)Any length can be delivered against agreement. Length error not more than +0.5%

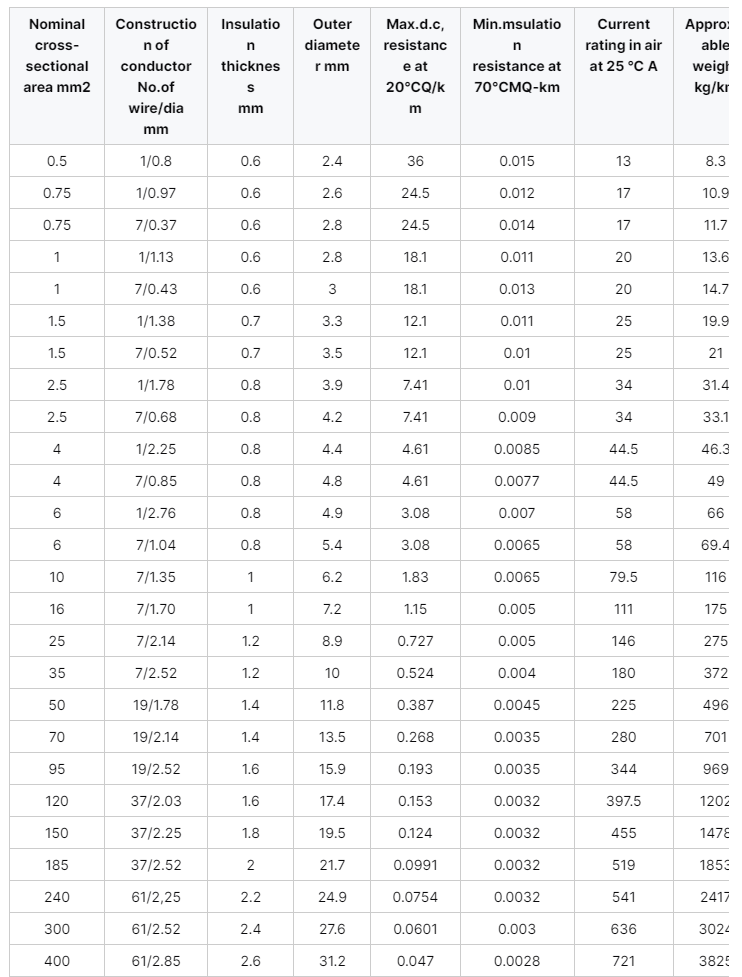

3.Product structure, size and reference data
