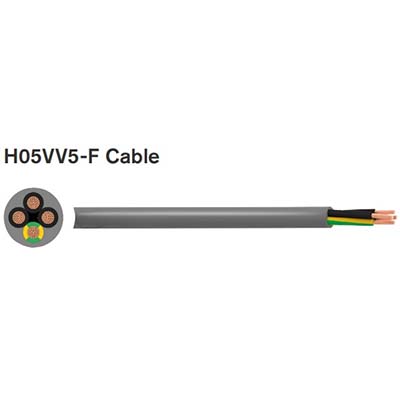

APPLICATION

Flexible power, process control and instrumentation cable for

industry and machinery environment. This cable is resistant

against most usual chemicals, oil and grease.

CHARACTERISTICS

Voltage Rating (Uo/U)

300/500V

Voltage Test

2kV

Temperature Rating

Fixed: -40ºC to +70ºC

Installation: -5ºC to +70ºC

Conductor Maximum Temperature

+70ºC

Minimum Bending Radius

Fixed Installation: 4 x overall diameter

Moved Application: 12.5 x overall diameter

CONSTRUCTION

Conductor

Class 5 Fine Stranded Bare Copper

Insulation

PVC TI 2 (Polyvinyl Chloride)

Outer Sheath

PVC TM2 (Polyvinyl Chloride)

Core Identification

Black numbered + Green/Yellow

Sheath Colour

Grey

STANDARDS

VDE 0281-12, VDE 0482-332-1-2, EN 60811-2-1

Fire Retardant according to: IEC 60332-1
