APPLICATION

Flexible power, process control and instrumentation cable

for industry and machinery environment with increased

requirements to electromagnetic compatibility. This cable

is resistant against most usual chemicals, oils and greases.

CHARACTERISTICS

Voltage Rating (Uo/U)

300/500V

Voltage Test

2kV

Temperature Rating

Fixed: -40ºC to +70ºC

Installation: -5ºC to +70ºC

Conductor Maximum Temperature

+70ºC

Transfer Impedance

250 Ohm/km

Minimum Bending Radius

Fixed Installation: 6 x overall diameter

Moved Application: 20 x overall diameter

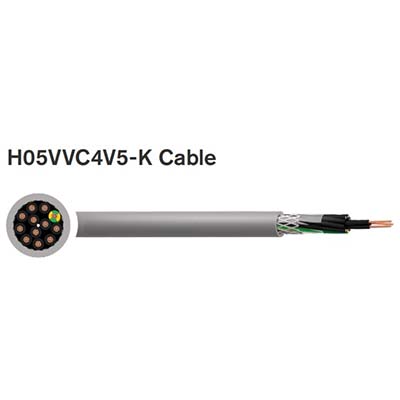

CONSTRUCTION

Conductor

Class 5 Fine Stranded Bare Copper

Insulation

PVC TI 2 (Polyvinyl Chloride)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PVC TM2 (Polyvinyl Chloride)

Core Identification

Black numbered + Green/Yellow

Sheath Colour

Grey

STANDARDS

VDE 0281-13, VDE 0482-332-1-2, EN 60811-2-1

Fire Retardant according to: IEC 60332-1
