1.Application

Our Medium Voltage Cable can be placed in the following areas

Outdoors

In the ground

Inside and outside of buildings (please note our CPR)

The cables are compliant with RoHS Directive EU 2011/65 / EU- RoHS 2.0 and Regulation No. 1907/2006 (REACH).

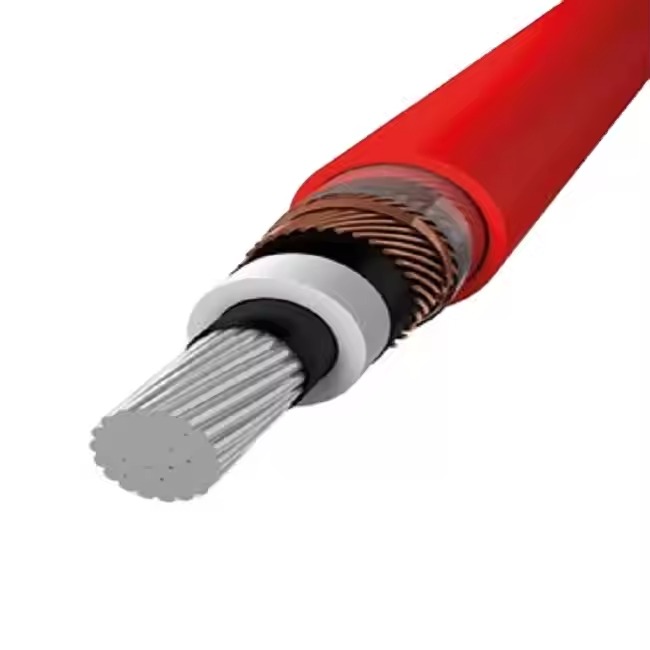

2.Construction

Stranded aluminium conductor

Conductor screen of semiconducting compound

Insulation of cross-linked polyethylen (XLPE)

Core screen of semiconducting compound

Filler sheath

Copper wire screen

Copper counter helix

Separation tape

PE sheath

3.Standard

International :  IEC 60502-2

National :  DIN VDE 0276 part 620

VDE-CODE DESIGNATION

N German standard cable

A Aluminium conductors

2X Cross-linked polyethylene (XLPE) insulation

S Screen of copper wires and copper tape, applied helically

2Y PE sheath

RM  R= circular, M= stranded
