1.Application

 AL is used for medium voltage installations or distribution networks both indoors and outdoors.

Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.

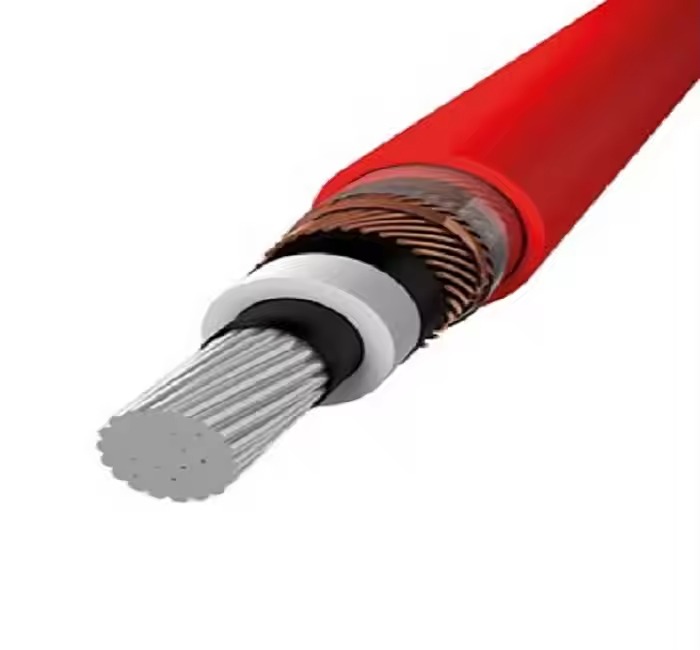

2.Construction

Conductor:Electrolytic compressed aluminium, class 2

Insulation:XLPE. Semiconducting layer around the isolation. Easy strippable

Screen:Screen of Cu threads and Cu tape

Outer sheath:Halogen free polyolefine type DMZ1 acc. to 620-1 and type ST7 acc. to IEC 60502-2, red

Bending radius 15 x cable diameter
