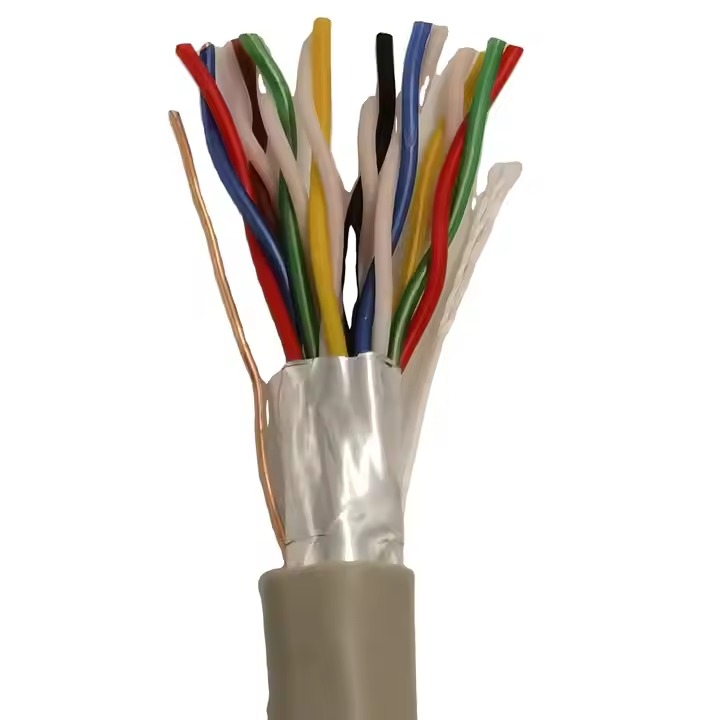

Basic Construction | |||||||
2pairs | 4pairs | 6pairs | 8pairs | 10pairs | |||
Conductor | Material | CCAM | |||||
Nom.Dia | 0.60MM | ||||||
Dielectric | Material | PE | |||||
Nom.Dia | 1.00MM | ||||||
Shield | Material | AL Foil | |||||
Coverage | 100% | ||||||
Drain wire | Material | CCA | |||||
Nom.Dia | 0.60MM | ||||||
Jacket | Material | Grey PVC | |||||
Nom.Dia | 0.70MM | ||||||
Conductor Resistance Ω/km | ≤186 | |||
Insulation Resistance | ≥5000MΩ.KM | |||
AC Voltage Test(1500V,1 min ,1M) | No Breakdown | |||
DC Voltage Test(2250V,1 min ,1M) | No Breakdown | |||
Voltage Rating | 75V | |||
Operating temperat | -20℃ to 60℃ | |||
