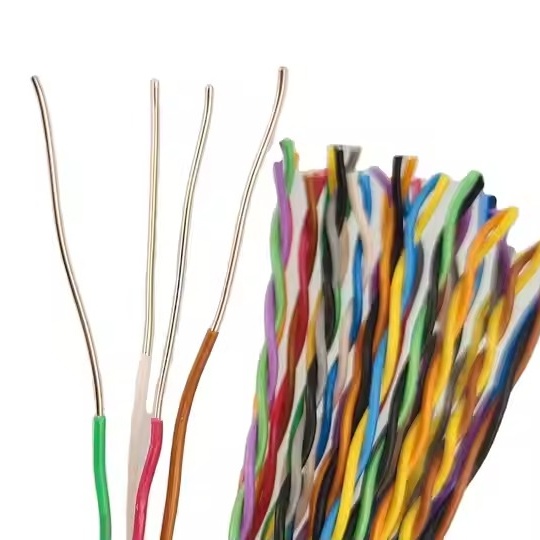

Basic Construction | ||||
4 pairs | 25 pairs | |||
Conductor | Material | BC | ||
Nom.Dia | 0.5 | 0.51 | ||
Dielectric | Material | PE | ||
Nom.Dia | 0.89 | 0.92 | ||
Jacket | Material | PVC/PE/LSZH | ||
Nom.Dia | 5.0 | 13.8 | ||
Conductor Resistance Ω/km | ≤186 | |||
Insulation Resistance | ≥5000MΩ.KM | |||
AC Voltage Test(1500V,1 min ,1M) | No Breakdown | |||
DC Voltage Test(2250V,1 min ,1M) | No Breakdown | |||
Voltage Rating | 75V | |||
Operating temperat | -20℃ to 60℃ | |||
