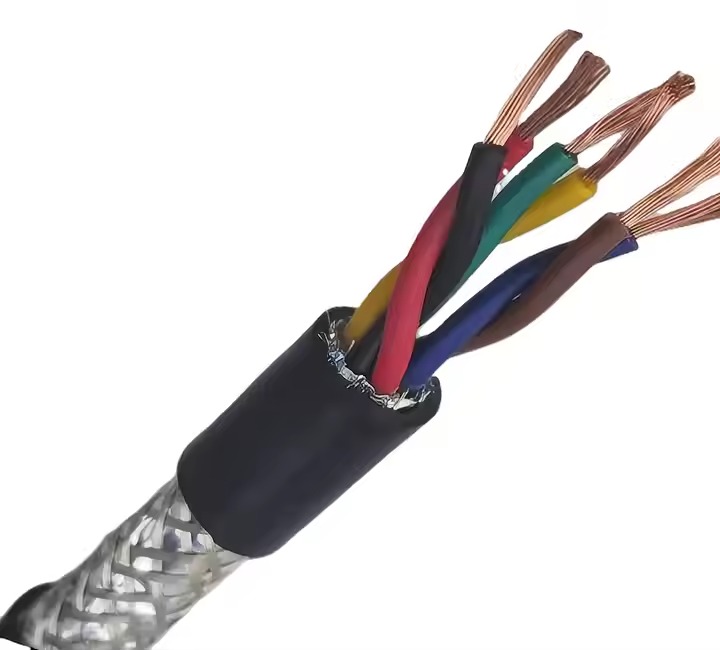

Conductor

24AWG (7X32) TC/BC

Insulation

PE

First Shield

Al Foil  100%

Second Shield

TC/Al braiding  40%-90%

Jacket

PVC/LSZH

Characteristics:

Nom.Conductor DCR

24ohm/305m  78.7ohm/KM

Nom.Capacitance

47.6pF/m

Nom.Impedence

120 ohm

Nom. Velocity of prop.

66%

Max. Current

2.1 Amps per Conductor at 25o
