APPLICATION

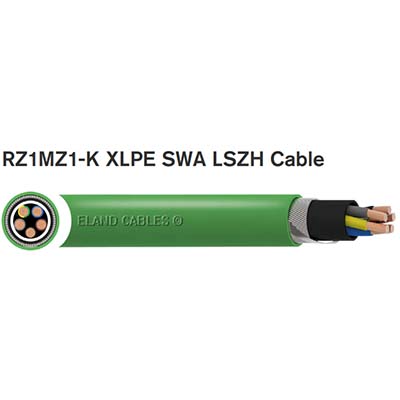

Multi-core LSZH cable with steel wire armour (SWA). Power

and auxiliary fixed wiring cables for use in power networks,

underground, outdoor and indoor applications and for use in

cable ducting. For installation where fire, smoke emission and

toxic fumes create a potential threat to life and equipment.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

-40ºC to +90ºC

CONSTRUCTION

Conductor

Class 5 flexible copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding Layer

LSZH (Low Smoke Zero Halogen)

Armour

Galvanized steel wires

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

1 core: Black

2 core: Blue Brown

3 core: Grey Black Brown

3 core including earth: Green/Yellow Blue Brown

4 core: Blue Brown Black Grey

4 core including earth: Green/Yellow Brown Black Grey

5 core including earth: Green/Yellow Blue Brown

Black Grey

Outer Sheath Colour

Green

STANDARDS

UNE 21123-4, EN 60228, HD603,

Flame Retardant according to IEC/EN 60332-1,

IEC/EN 60332-3

Low Smoke Zero Halogen according to IEC/EN 60754-1/2,

IEC/EN 61034-1/2
