APPLICATION

Power and auxiliary control cables for use in power networks,

underground in free-draining soil, outdoor and indoor

applications and for use in cable ducting.

CHARACTERISTICS

Voltage Rating Uo/U

1.9/3.3kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

12 x overall diameter

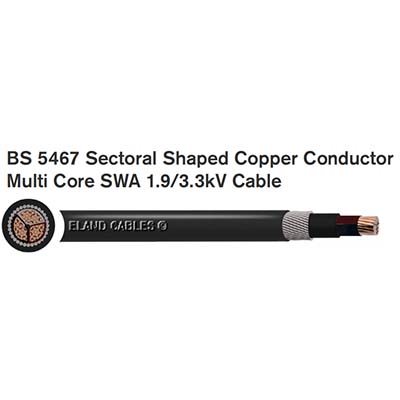

CONSTRUCTION

Conductor

Class 2 sectoral shaped stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Separator

Polyester Tape

Filler

PVC (Polyvinyl Chloride)

Armour

SWA (Galvanised steel wire armour)

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

Brown Black Grey

Sheath Colour

Black

STANDARDS

BS 5467, IEC 60502-1

Flame retardant to IEC/EN 60332-1

UV Resistant
