APPLICATION

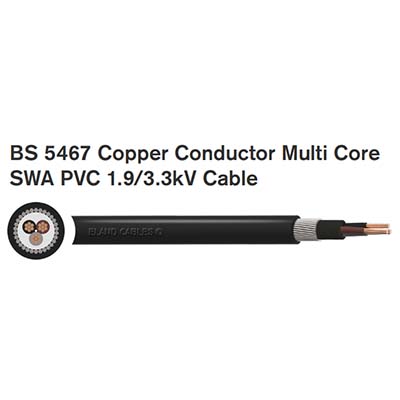

Multi-core PVC cable with steel wire armour (SWA). This cable

is suitable for direct burial free-draining soil conditions for fixed

indoor and outdoor installations.

CHARACTERISTICS

Voltage Rating Uo/U

1.9/3.3kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

12 x overall diameter

CONSTRUCTION

Conductor

Class 2 stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Separator

Polyester Tape

Filler

PVC (Polyvinyl Chloride)

Armour

SWA (Galvanized Steel Wire Armour)

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

Brown Black Grey

Sheath Colour

Black

STANDARDS

BS 5467, IEC 60502-1, EN 60228

Flame retardant to IEC/EN 60332-1

UV Resistant
