APPLICATION

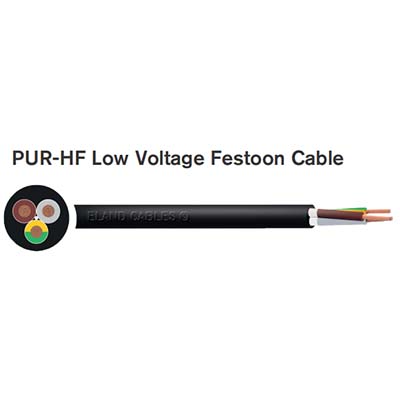

For use as energy and control cable in festoon systems and

as a chain cable. Also suitable as drum reeling cable under

moderate mechanical stresses, torsion, tension and torque.

The special polyurethane compound jacket offers a very good

protection against hydrolysis,solvents,alkalines and oils.

CHARACTERISTICS

Voltage Rating (Uo/U)

0.6/1kV

Temperature Rating

Fixed installation: -50°C to +80°C

Mobile operation: -40°C to +80°C

Minimum Bending Radius

Fixed Application: 6 x Overall Diameter

Mobile Applications: 8 x Overall Diameter

Maximum Tensile Load

15 N/mm2

Maximum Torsion

+/- 25o /m

Travel Speed

Festoon systems: up to 200m/min

Reeling applications: up to 60m/min horizontal

Chain systems: up to 200 N/mm

CONSTRUCTION

Conductor

Class 5 flexible stranded tinned copper

Insulation

HF (Halogen Free) compound based on polyester

Lay Up

Central textile strength member, cores laid up in concentric

layers with short length of lay

Outer Sheath

PUR HFFR (Polyurethane - Halogen Free, Flame Retardant)

Core Identification

3 Core: Green/Yellow Blue Brown

4 Core: Green/Yellow Brown Black Grey

5 Core: Green/Yellow Blue Brown Black Grey

From 6 cores: white cores with black numbers

Sheath Colour

Black or Yellow or Orange

STANDARDS

IEC 60228, Generally to IEC 60502, DIN VDE 0472-501, 502,

503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE

0250-1 and IEC 60502, IEC 60332-1, HD/EN/IEC 60811-2-1,

DIN VDE 0473-811-2-1, DIN VDE 0298-4
