APPLICATION

Drum reeling cable for use under high mechanical stresses,

torsion, tension and torque. Suitable as vertical drum reeling

cable under moderate mechanical stresses. A strength member

has been integrated to increase tensile load, acceleration and

speed. PUR sheath offers protection against hydrolysis,

solvents, alkalines and oils.

CHARACTERISTICS

Voltage Rating (Uo/U)

0.6/1kV

Temperature Rating

Fixed installation: -50°C to +90°C

Mobile operation: -40°C to +90°C

Minimum Bending Radius

Fixed : 6 x Overall Diameter

Mobile: 8 x Overall Diameter

Maximum Tensile Load

20 N/mm2

Maximum Torsion

+/- 25o/m

Travel Speed

Festoon systems: up to 200m/min

Reeling applications: up to 200m/min horizontal

Minimum Distance for Change of Direction

20x Overall Diameter

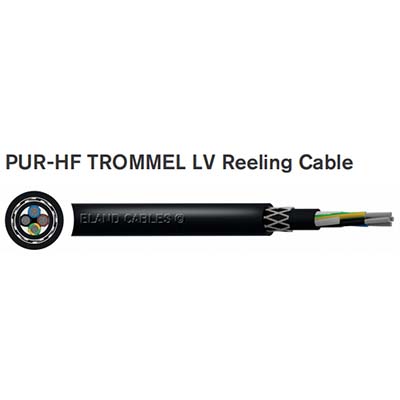

CONSTRUCTION

Conductor

Class 5 flexible stranded Copper

Insulation

LSZH (Low Smoke Zero Halogen)

Lay Up

Central textile strength member, cores laid up in concentric layers

Inner Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Braid

Anti-twisting Textile braid

Outer Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Core Identification

4 Core: Green/Yellow Brown Black Grey

5 Core: Green/Yellow Blue Brown Black Grey

From 6 cores: white cores with black numbers

Sheath Colour

Black or Yellow or Orange

STANDARDS

IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250,

DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402,

602, 303, 615, DIN VDE 0250-1 and IEC 60502, IEC 60332-1

HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
