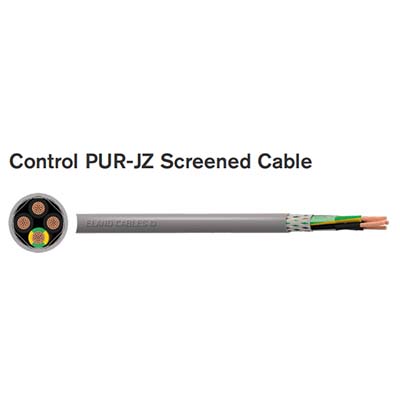

APPLICATION

These Screened Polyurethane cables are highly resistant

against wear and tear. The oil and coolant resistance allows

application in industrial environments, machine building,

engineering or steel works. This cable is suitable for medium

mechanical stress without tension load and forced guiding.

CHARACTERISTICS

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40ºC to +80ºC

Installation: -5ºC to +80ºC

Minimum Bending Radius

Fixed: 5 x overall diameter

Flexed: 10 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible stranded bare copper

Insulation

PVC Compound (Polyvinyl Chloride)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PUR (Polyurethane)

Core Identification

Black numebered + Green/Yellow

Sheath Colour

Grey

STANDARDS

IEC/EN 60811-404

Fire Retardant according to IEC/EN 60332-1
