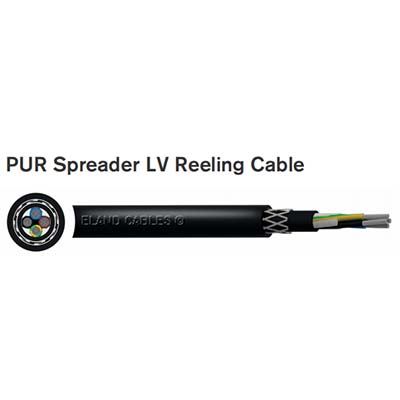

APPLICATION

Vertical reeling cable under high mechanical stresses, torsion,

tension and torque. Mainly used for spreader reeling applications.

Strength member to increase tensile load, acceleration and speed.

PUR sheath offers a very good protection against hydrolysis,

solvents, alkalines and oils.

CHARACTERISTICS

Voltage Rating (Uo/U)

0.6/1kV

Temperature Rating

Fixed installation: -50°C to +90°C

Mobile operation: -40°C to +90°C

Minimum Bending Radius

Fixed Application: 6 x Overall Diameter

Mobile Applications: 8 x Overall Diameter

Maximum Tensile Load

30 N/mm²

Maximum Torsion

±25º/m

Travel Speed

Festoon Systems Up to 240m/min

Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertical

CONSTRUCTION

Conductor

Class 5 flexible stranded copper

Insulation

Halogen free compound based on polyester

Lay Up

Central Aramid strength member, cores in concentric layers

Inner Sheath

PUR-HF (Halogen Free, flame retardant Polyurethane)

Braiding

Anti-twisting element - Aramid yarns braiding

Outer Sheath

PUR-HF (Halogen Free, flame retardant Polyurethane)

Core Identification

From 6 cores: white cores with black numbers

Sheath Colour

Black or Yellow or Orange

STANDARDS

IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250,

DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402,

602, 303, 615, DIN VDE 0250-1, IEC 60502, IEC 60332-1

HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
