APPLICATION

For signal transmission between electronic devices, in

computer systems or

process control units with requirements to electromagnetic

compatibility.

CHARACTERISTICS

Voltage Rating

250V

Temperature Rating

Fixed: -30ºC to +70ºC

Minimum Bending Radius

Fixed: 7.5 x overall diameter

Fixed: 15 x overall diameter

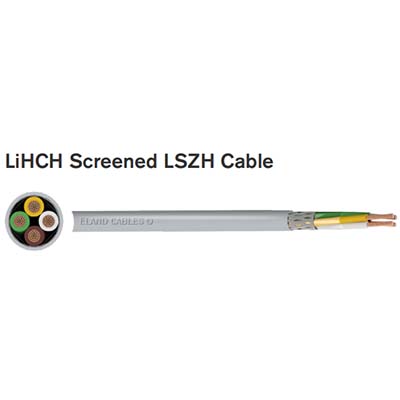

CONSTRUCTION

Conductor

Generally to Class 5 flexible stranded copper

Insulation

LSZH (Low Smoke Zero Halogen)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

Core 1: White

Core 2: Brown

Core 3: Green

Core 4: Yellow

Core 5: Grey

Core 6: Pink

Core 7: Blue

Core 8: Red

Core 9: Black

Core 10: Violet

Core 11: Grey/Pink

Core 12: Red/Blue

Core 13: White/Green

Sheath Colour

Grey

STANDARDS

IEC/EN 60754-1/2, IEc/EN 60754-2

Flame Retardant according to: IEC/EN 60332-1
