APPLICATION

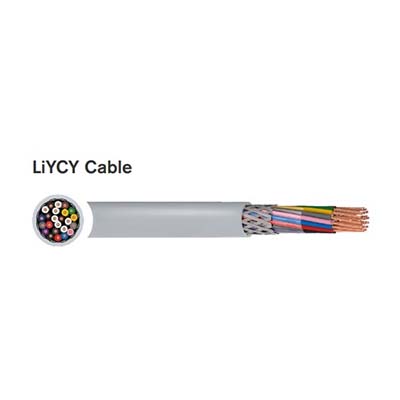

LiYCY cable can be used for signal transmission between

electronic devices, in computer systems or process

control units with increased electromagnetic compatibility

requirements.

CHARACTERISTICS

Voltage Rating (Uo/U)

250/250V

Voltage Test

1.2kV

Temperature Rating

Fixed: -30ºC to +80ºC

During Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed Installation: 6 x overall diameter

CONSTRUCTION

Conductor

Class 5 Fine Stranded Bare Copper

Insulation

PVC (Polyvinyl chloride)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PVC (Polyvinyl chloride)

Core Identification

2 Core: White Brown

3 Core: White Brown Green

4 Core: White Brown Green Yellow

5 Core:

White

Brown

Green

Yellow

Grey

6 Core:

White

Brown

Green

Yellow

Grey

Pink

Larger sizes: 6 Core colours + following colours in addition

7 Core:

Blue

8 Core: Red

10 Core: Black Violet

12 Core: Grey/Pink Red/Blue

14 Core: White/Green Brown/Green

15 Core: White/Yellow

16 Core: Yellow/Brown

18 Core: White/Grey Grey/Brown

20 Core: White/Pink Pink/Brown

21 Core: White/Blue

24 Core: Brown/Blue White/Red Brown/Red

25 Core: White/Black

30 Core: Brown/Black Grey/Green Yellow/Grey

Pink/Green Yellow/Pink

Sheath Colour

Grey

STANDARDS

VDE 0482-332-1-2, EN 60811-2-

Fire Retardant according to: IEC 60332-1
